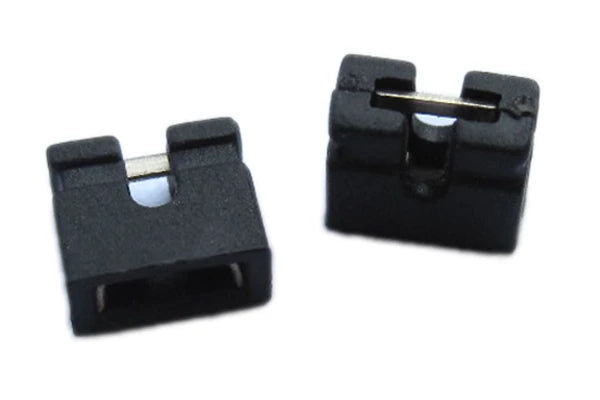

2Pin 2.54mm Mini Jumper Short Circuit Cap H6.5 Close Type

2Pin 2.54mm Mini Jumper Short Circuit Cap H6.5 Close Type

Rs. 0.80
Rs. 0.80
Sale Sold out
Shipping calculated at checkout.

1800 in stock

Technical Specifications



Brand:
Generic
Current Rating:
3A
Contact Resistance:
20 mohm max
Insulation Resistance:
1000 MOhm min
Size:
2.5 mm x 5 mm
Dielectric Withstanding:
1000V AC for 1 min
Temperature Range:
-40 C to +85 C
Mount:
Through Hole
Number of Pins:
2
Pitch:
2.54 mm


Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.



Description



The 2Pin 2.54mm Mini Jumper Short Circuit Cap H6.5 Close Type is a highly reliable and efficient solution designed to meet the needs of electronic engineers, developers, and hobbyists alike. With a current rating of 3A and a contact resistance of 20 mohm max, this compact jumper cap ensures optimal conductivity and minimal power loss, guaranteeing seamless performance in various electronic applications.

Featuring an insulation resistance of 1000 MOhm min and a dielectric withstanding of 1000V AC for 1 min, this jumper cap provides a robust and safe solution for both professional engineers and DIY enthusiasts. Its compact size of 2.5mm x 5mm, along with the through-hole mount and two pins with a pitch of 2.54 mm, allows for easy integration into tight spaces without compromising on functionality.
