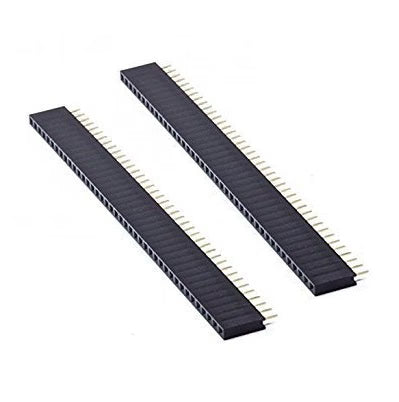

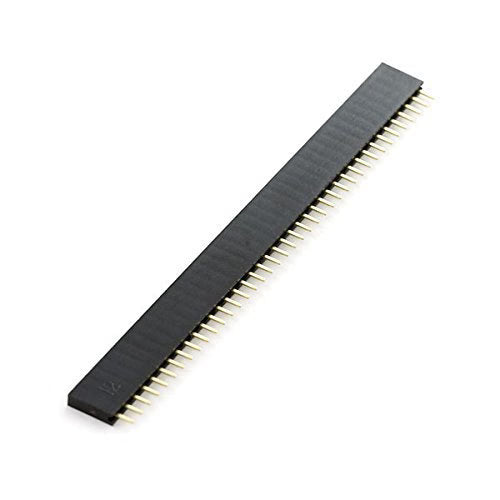

2mm Pitch Female Berg Strip 40x1

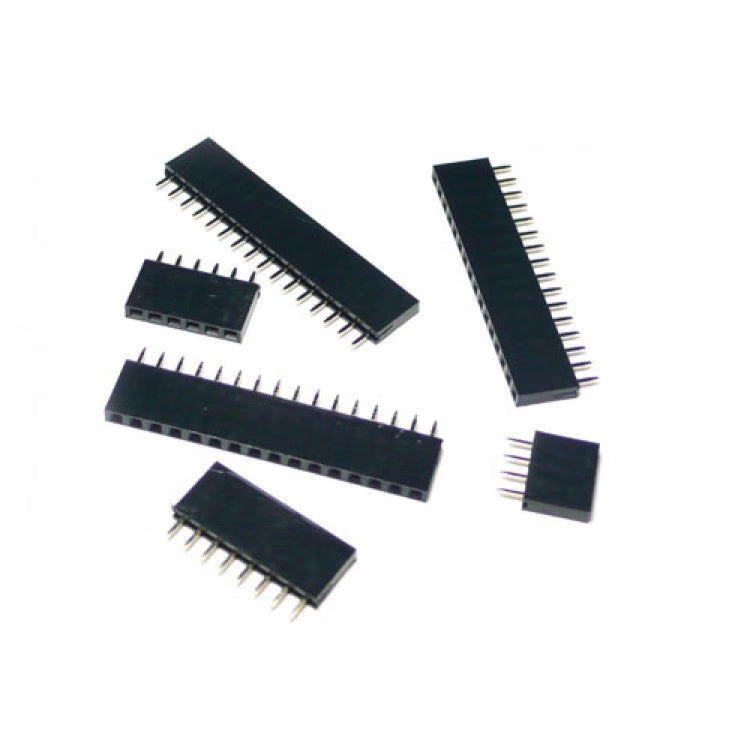

This is 40 pins single row female berg strip/header. It can be cut into any desired sizes with the wire cutter. The pitch for this header is standard 2.0mm.

Note: Images may vary from actual product in terms of height and width of the connector but Functionality and features are the same. (Go through Specifications before purchase.)

Specifications and Features:

1. Number of Pins: 40.
2. Pin Spacing(pitch): 2 mm.
3. Strip Length: 80.60 mm.
4. Strip width : 2.49 mm.
5. Strip Height: 4.4 mm(Only Plastic Part).
6. Strip Height: 6.8 mm (with contact Points).
7. Pin height: 2.2mm.

Package Includes:

1 x 2mm Pitch Female Berg Strip 40x1
