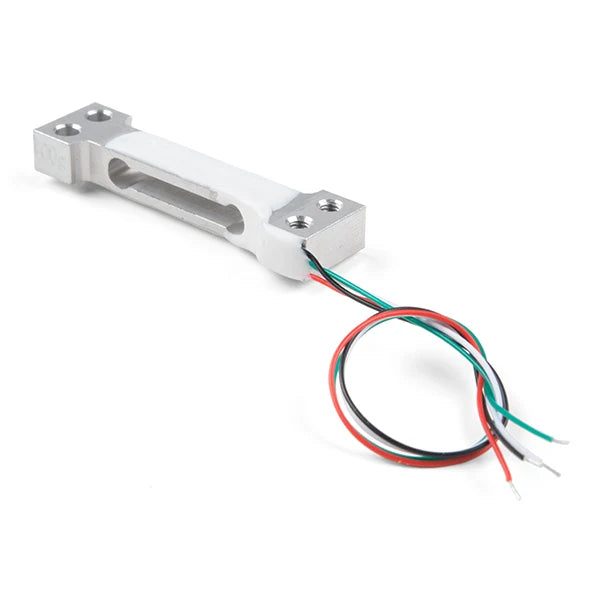

200gm Straight Bar Mini Load Cell Electronic Weighing Scale Sensor Aluminium Strain Gauge Weight Sensor (200gm Load Cell)

200gm Straight Bar Mini Load Cell Electronic Weighing Scale Sensor Aluminium Strain Gauge Weight Sensor (200gm Load Cell)

The 200gm straight bar mini load cell is a compact strain gauge based weight sensor designed for precision low weight measurement applications. It converts applied force into a proportional electrical signal and is suitable for laboratory electronic and embedded weighing systems.

Key Features -

• Rated capacity 200gm load measurement
• Straight bar parallel beam type structure
• High precision strain gauge sensor
• Aluminium alloy construction for stability
• Compact size suitable for miniature weighing systems
• Compatible with HX711 and ADC amplifier modules

Specifications -

• Sensor type - strain gauge load cell
• Capacity - 200gm
• Structure - straight bar parallel beam type
• Material - aluminium alloy
• Output type - millivolt signal output
• Protection rating - IP65 typical
• Wire configuration - 4 wire Wheatstone bridge
• Mounting - screw mounting holes typical

Applications -

• Precision electronic weighing scales
• Laboratory and scientific instruments
• Jewellery and micro weighing systems
• Force sensing and measurement projects
• Arduino and embedded electronics applications

Pinout Configuration -

• Red - excitation positive
• Black - excitation negative
• Green - signal positive
• White - signal negative
