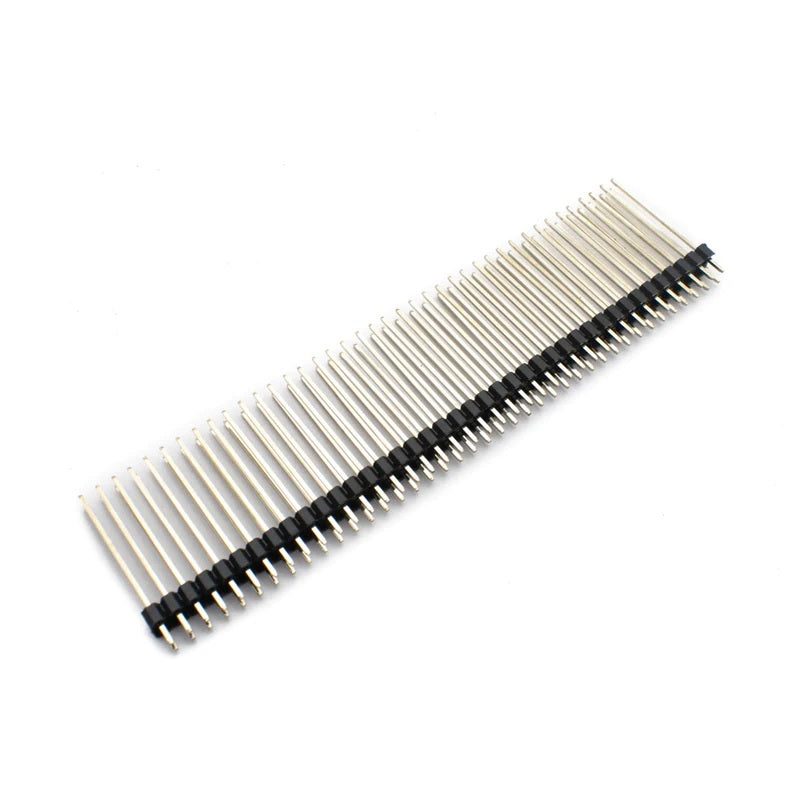

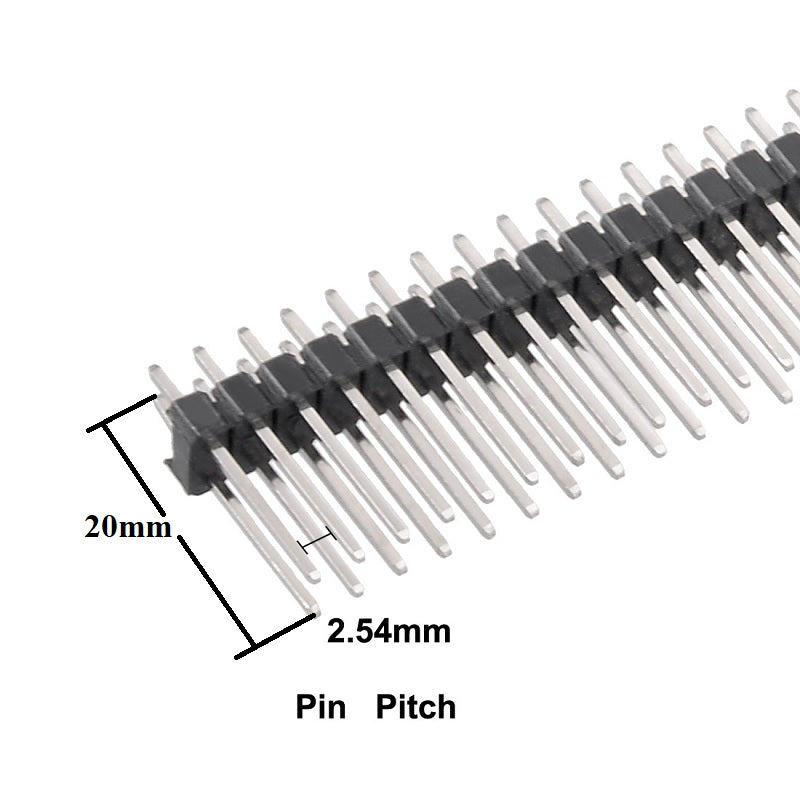

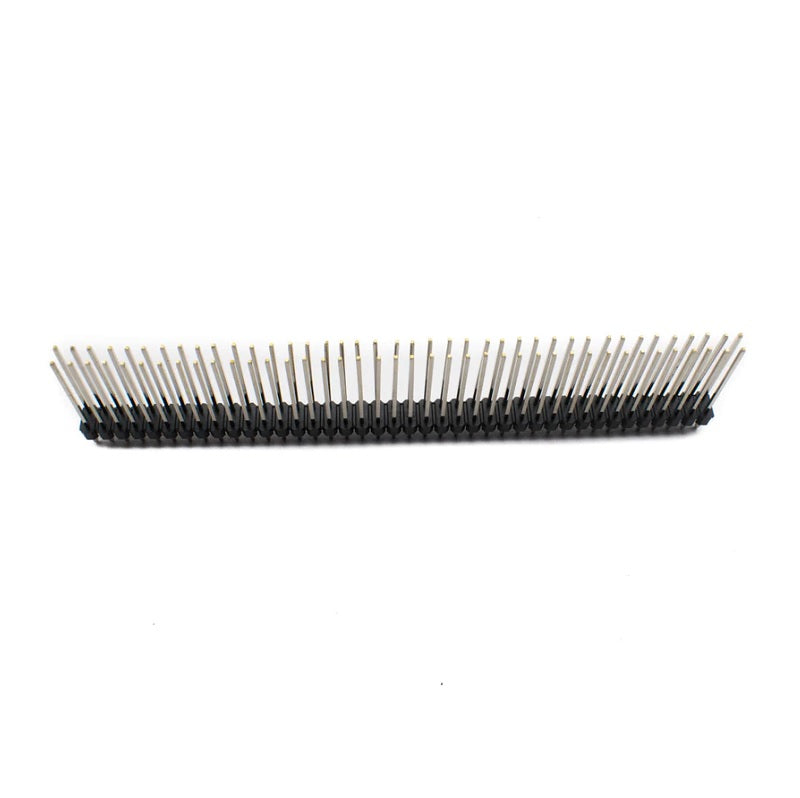

2×40 – 40 Pin Male Double Row Header Strip 20mm Height – 2.54mm Pitch

2×40 – 40 Pin Male Double Row Header Strip 20mm Height – 2.54mm Pitch

2.54mm 2×40 Pin Male Double Row Header Strip It is a 2.54mm 2×40 or 40×2 Pin Male Double Row Header Strip. This 2×40 Pin Male Break Away Header Pin has the industry-standard spacing of 2.54mm and is designed with solderless breadboards, perforated prototyping PCBs, female headers, and pre-crimped jumper wires. They are used for the extension of pins of Microcontrollers and ICs. This connector is a double-row, 40-pin, male header strip that can be cut or broken into smaller strips.Tags, 2×40 Pin Berg Strip, 40Pin Dual Row Berg Strip, 40X2 Berg Strip, 40×2 Berg Strip 2.54mm Pich, 40×2 Berg header, 2×40 Berg Strip.

Features/Specs:

• Connector: Header Strip
• Gender: Male
• Current Rating: 3A
• Pin Spacing: 2.54 mm
• Contact Material: Phosphor Bronze
• Contact Resistance: 20mΩ
• Insulation Material: PBT UL 94V-0
• Insulation Resistance (MΩ): ≥1000
• Operating Temperature: -40°C to 105°C
• Mounting: Thought Hole
• Width: 102 mm
• Height: 20 mm
• Weight: 1 gm

Datasheet: 2×40 – 40 Pin Male Double Row Header Strip 20mm Height – 2.54mm Pitch
