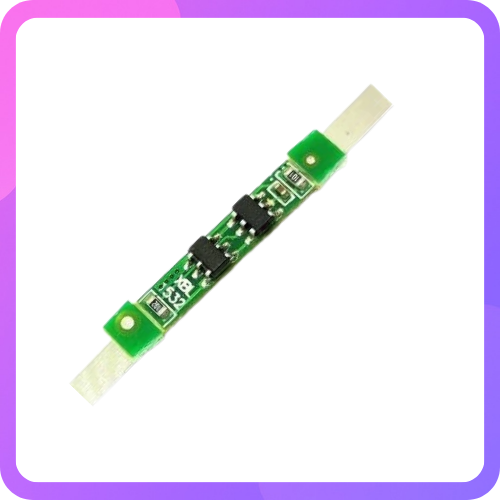

1S 2A Lithium Battery Protection Board BMS with Nickel Strip for 18650 Cells

This 1S 2A BMS module provides overcharge, over-discharge, and short-circuit protection for single-cell lithium batteries. Includes nickel strip for easy assembly. Ideal for DIY projects and 18650 battery packs.

• 1S 2A BMS protection module
• Overcharge protection for battery safety
• Over-discharge protection prevents damage
• Short-circuit protection included
• Compatible with 18650 lithium cells
• Includes nickel strip for easy assembly
• Perfect for DIY battery pack projects

Lithium Batteries are extremely sensitive and dangerous to use without a proper protection circuit. This BMS circuit can be easily used and installed in a 18650 Li-ion Battery. Since this is rated for 1S battery, the operating voltage is 3.2V to 4.2V. It supports 2A of current. This is a Battery Management System circuit that monitors the charging and discharging profile of the battery. It is designed for more than 20,000 hours of operations to protect from over voltage, over current, over charge related conditions.

Pinout

• B+: Battery Positive
• B-: Battery Negative
• P+: Charge / Discharge Positive
• P-: Charge / Discharge Negative

Features: -

1. High accuracy when detecting the voltage of the battery and the charge current.
2. The terminal of the BMS circuit uses Nickel Strip
3. Protects from Battery over-voltage, over current, over charge etc.
4. Small Size board for easier fitment.

Specification: -

• Overcharge voltage: 4.25±0.05V
• Overcharge release voltage: 4.23±0.05V
• Over-discharge voltage:  2.54±0.1V
• Maximal continuous charging/discharge current:  2A – 5A
