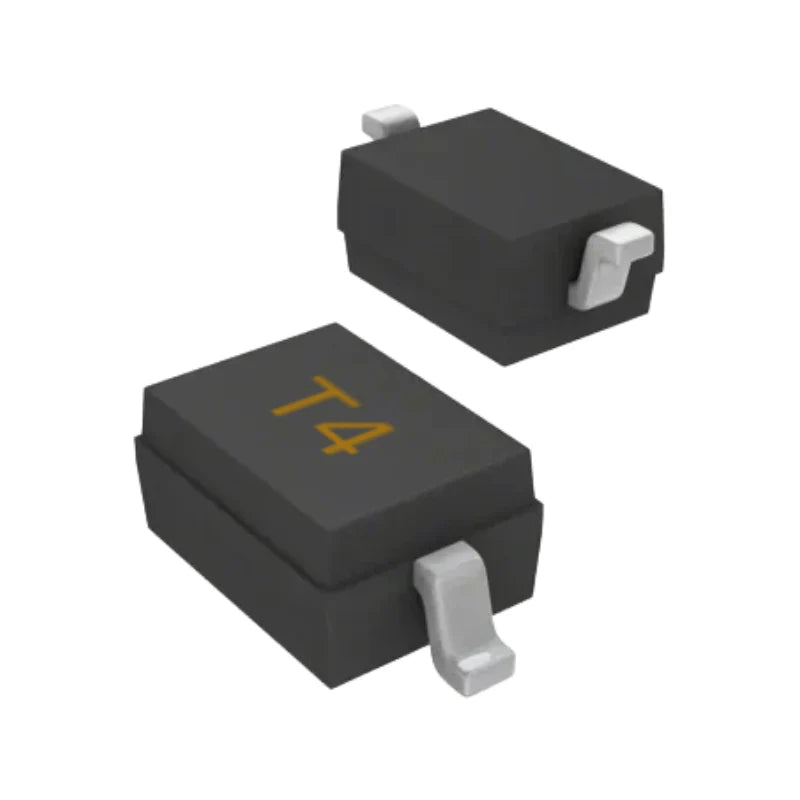

1N4148WS T4 Switching Diode - SOD-123 SMD Package

The 1N4148WS T4 is a high-speed switching diode designed for fast switching applications in electronic circuits. Its compact SOD-123 SMD package allows space-saving PCB layouts and compatibility with automated surface-mount assembly. This diode is widely used in signal processing, protection circuits, logic circuits, and high-speed switching applications, offering reliable performance with low forward voltage drop and fast recovery time.

Features of 1N4148WS T4 Switching Diode:

1. High-speed switching diode for fast electronic circuits
2. SOD-123 SMD package for compact PCB layouts
3. Low forward voltage drop for efficient operation
4. High reliability and long-term performance
5. Fast reverse recovery time for high-speed applications
6. Suitable for signal processing, protection, and logic circuits
7. RoHS compliant and ideal for automated SMD assembly

Specifications of 1N4148WS T4 Switching Diode:

• Model: 1N4148WS T4
• Type: Switching Diode
• Maximum Repetitive Reverse Voltage: 100V
• Average Forward Current: 200mA
• Peak Forward Surge Current: 500mA
• Forward Voltage Drop: 1V (typical at 10mA)
• Reverse Recovery Time: 4ns (typical)
• Package: SOD-123 – SMD
• Operating Temperature Range: -65°C to +175°C

Package Includes:

1 × 1N4148WS T4 Switching Diode – SOD-123 SMD Package
