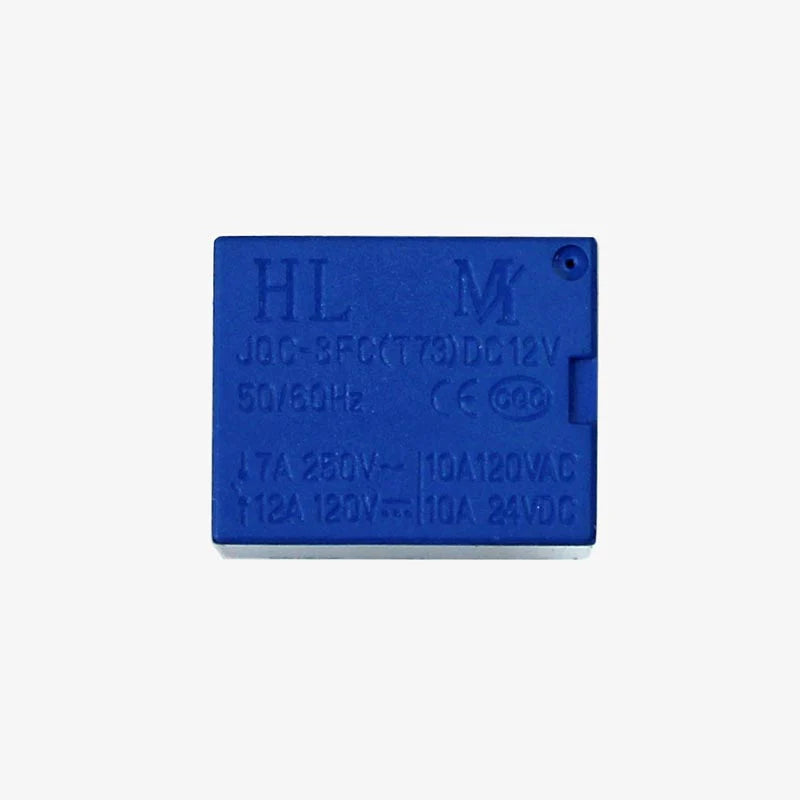

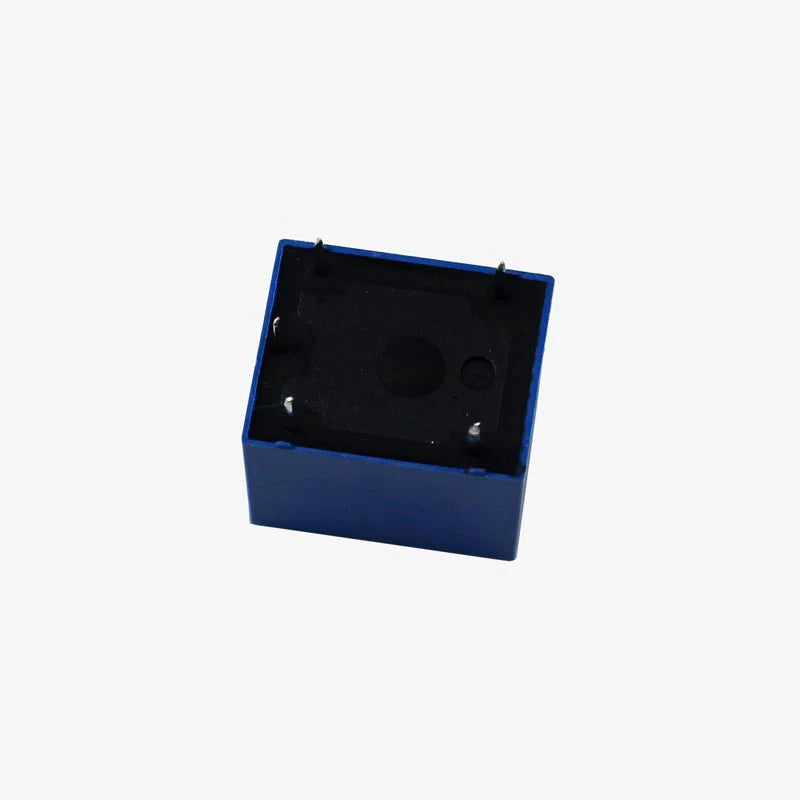

12V SPDT Relay (12v 7amp relay)

 is the 12V relay most commonly used switching device in electronics. It is commonly used in Home Automation projects to switch AC loads, To Control (On/Off) Heavy loads at a pre-determined time/condition, Used in safety circuits to disconnect the load from supply in event of failure and much more. The specifications of the relay is given below:

12V SPDT Relay Specifications:

• Trigger Voltage (Voltage across coil) : 12V DC
• Trigger Current (Nominal current) : 100mA
• Maximum AC load current: 7A @ 250/125V AC
• Maximum DC load current: 10A @ 30/28V DC
• Maximum switching: 300 operating/minute (mechanically)
