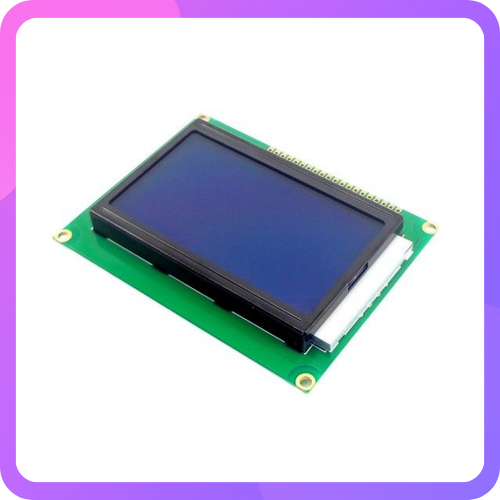

JHD12864E – 128X64 Graphic LCD Display – Blue Backlight

JHD12864E his is a 128×64 LCD display made by JHD. It is based on the HD44870 display controller which makes it is easy to interface this LCD with most microcontrollers. It’s extreme popularity ensures that no matter which microcontroller platform you are using, you will definitely find ready libraries to use this LCD. In this LCD each character is displayed in a 5×8 pixel matrix. The 128×64 intelligent alphanumeric dot matrix display is capable of displaying 256 different characters and symbols. Tags, 128×64 Character Blue Graphic LCD Display, 128×64 LCD Display, Display Devices, 128×64 Character (Blue) Graphic LCD Display, GRAPHIC KS0108 128*64 LCD, 128×64 Character (Blue) Graphic LCD Display, Graphic LCD Display 128×64 (Blue).

Features/Specs:

• Part No: JHD12864E
• Display Format: 128×64 Dots
• Connection: Pin Header
• Visual Area: 71.80×40.00mm
• Dot (Pixel)Pitch: 0.52×0.52mm
• Sunlight Readable: Yes
• Power Supply: 5V
• Backlight Current: 60 mA
• Operating Temperature: -20°~70°C
• Storage Temperature: -30°~80°C
• Backlight Color: Blue Color
• Outline Dimension:
• Width: 93 mm
• Height: 70 mm
• Thickness: 12.5 mm
