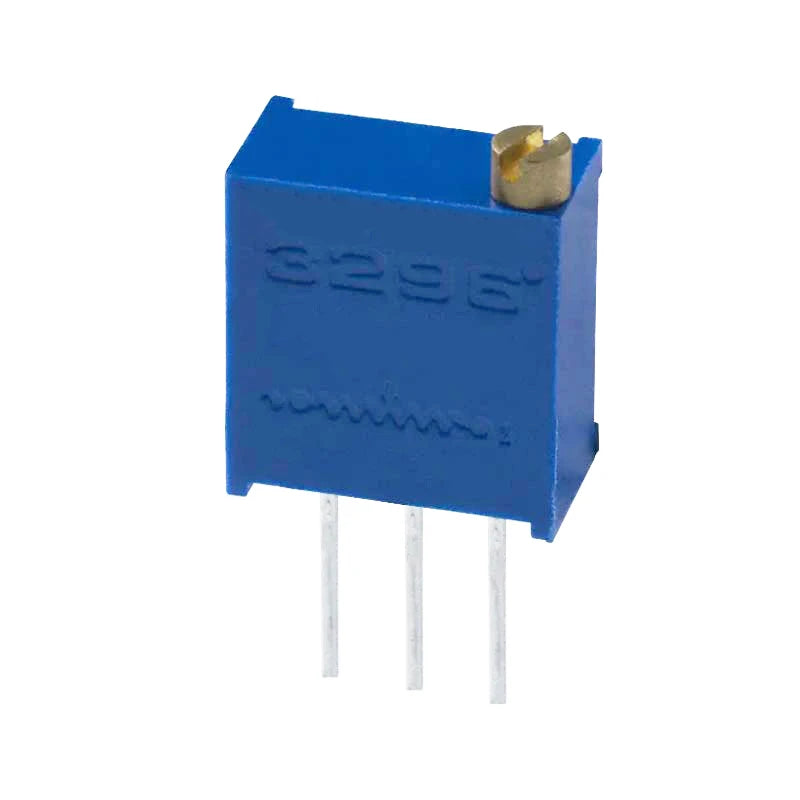

100K 0.5W 10% Multiturn Trimpot Trimming Potentiometer Through-hole
100K 0.5W 10% Multiturn Trimpot Trimming Potentiometer Through-hole
SKU:
Regular price
Rs. 7.85
Regular price
Sale price
Rs. 7.85
Shipping calculated at checkout.
Share
Quantity
49 in stock
Couldn't load pickup availability
Technical Specifications
Brand:
Bonens
Resistance:
100 kohm
Power Rating:
500 mW (1/2 W)
Tolerance:
10 %
Number of Turns:
25
Temperature Coefficient:
100 PPM / C
Adjustment:
Top Slot
Operating Temperature:
-55~125C
Dimensions:
9.53 x 4.83 x 10.03 mm
Rotational Life:
200 cycles
Construction:
Sealed
Number of Pins:
3
Composition:
Cermet
Mount:
Through Hole
Description
3296 - 3/8 ” Square Trimpot Trimming Potentiometers perform a variety of circuit adjustments in all types of electronic equipment. Multi-turn trimmers consist of three actuation types - lead screw, worm gear, and planetary gear. Lead screw actuated trimmers have a linear wiper path; worm gear and planetary gear actuated trimmers have a circular path. Multiturn trimmers are suitable for applications that require fine resistance adjustment.
