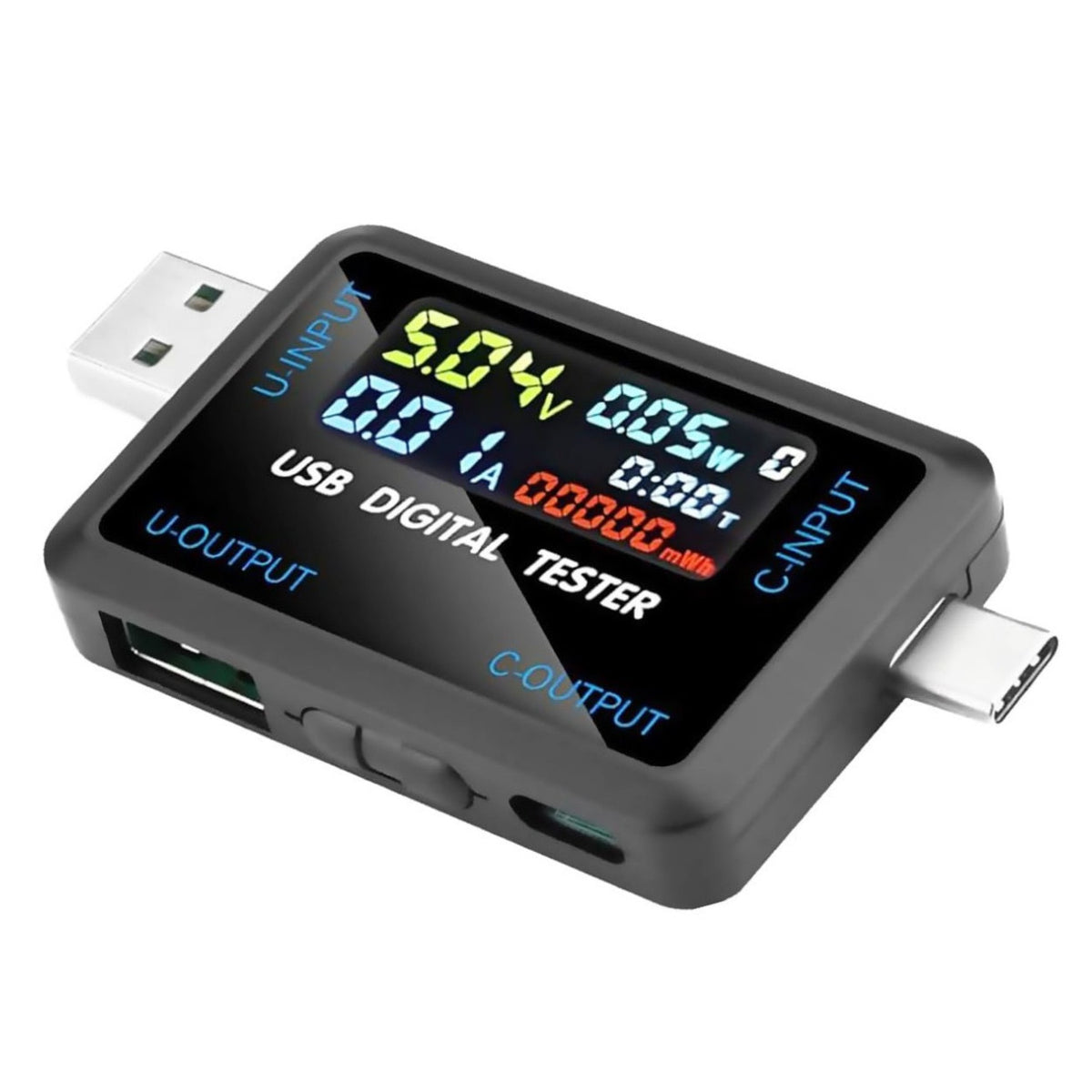

10-in-1 USB & Type-C Digital Tester - IPS Voltmeter, Ammeter, Impedance & Capacity Meter

Unmatched Dual-Interface Versatility Unlike older single-port testers, this 10-in-1 Digital Tester features both standard 8A high-current USB-A (U-INPUT / U-OUTPUT) and Type-C (C-INPUT / C-OUTPUT) interfaces built directly into the housing. This allows you to test everything from legacy 5V wall bricks to modern high-wattage laptop chargers without needing a drawer full of adapter dongles. The unit is designed to handle high-current applications up to 5A safely.

IPS True Color Display & 10 Data Points The tester utilizes an upgraded IPS true color digital LCD screen for exceptional contrast and readability from any angle. It simultaneously tracks and displays ten vital metrics to give you a complete picture of your power delivery:

• Voltage & Current: Real-time V and A monitoring.

• Power (Wattage): Measures continuous power throughput from 0 to 150W.

• Capacity & Energy: Tracks both mAh and mWh to verify power bank sizes.

• Impedance: Measures cable resistance from 1 to 999.9 ohms.

• Temperature: Monitors internal device heat from 0 to 80°C.

• Timing: Records charging sessions up to 999 hours and 59 minutes.

• D+ / D- Data Line Voltage: Reads 0 to 2.99V on the data pins for fast-charge protocol diagnostics.

Specifications

• Input Interfaces: 5A High-Current USB-A / Type-C

• Output Interfaces: Female USB-A / Type-C

• Display: IPS True Color Digital LCD

• Power Measurement Range: 0 - 150W

• Impedance Measurement Range: 1 - 999.9 ohms

• Temperature Measurement Range: 0 - 80°C

• Timing Capacity: 999 hours and 59 minutes

• USB D+ / D- Voltage Range: 0 - 2.99V

• Refresh Time: >500mS (approx. 0.5 times/second)

• Self-Consumption Current: <0.02A

• Dimensions: 76.9mm x 38mm x 11mm
