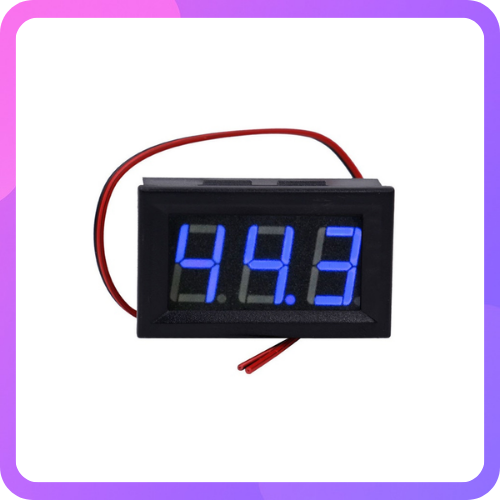

0.56 Inch DC Voltmeter Module 0-30V

This 0.56 inch DC voltmeter module measures voltages from 0-30V. Bright LED display for clear readings in various conditions.

• Voltage Measuring Range: 0 to 200 VDC
• It is a 2-wire display.
• LED Color: Blue
• Current Consumption: Less than 20mA, generally 5-15mA
• Accuracy: 0.1 V.
• Refresh Speed : Approx 300mS/time.

The wiring of this 0.56 Inch DC5V-120V DC Two-Wire Digital Display Voltmeter is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn.

This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 0-200VDC
In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference in the measured voltage. decimal point.
This 0.56 Inch DC5V-120V DC Two-Wire Digital Display Voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes.

Features :

1.  This voltmeter has a wide range of 5-120V DCs, suitable for 12V, 24V, 36V, 48V, 60V, 72V, 80V, 96V motorcycles, electric vehicles, battery cars, and other voltage measurement purposes.
2. Equipped with two wirings, direct measurement, and no auxiliary power supply. It can be easily connected to vehicles, battery cars, motorcycles,s, and other vehicle lines.
3. With the reverse connection protection function, the line connection will not burn.
4. The measuring precision of this voltmeter can be adjusted automatically. The resolution is 0.1V below 100V and 1V above 100V.
5. The voltmeter is designed with an ABS plastic frame, which can be conveniently installed in rectangular holes of 1.5-3 mm thickness.
6. High precision. and Low operating voltage.
7. With reverse protection, then anti-burn.
8. Ultra-high pressure 132V does not burn.

Package Includes :

1 x 0.56 Inch DC5V-120V DC Two-Wire Digital Display Voltmeter for Car Bicycle Motorcycle-Blue
