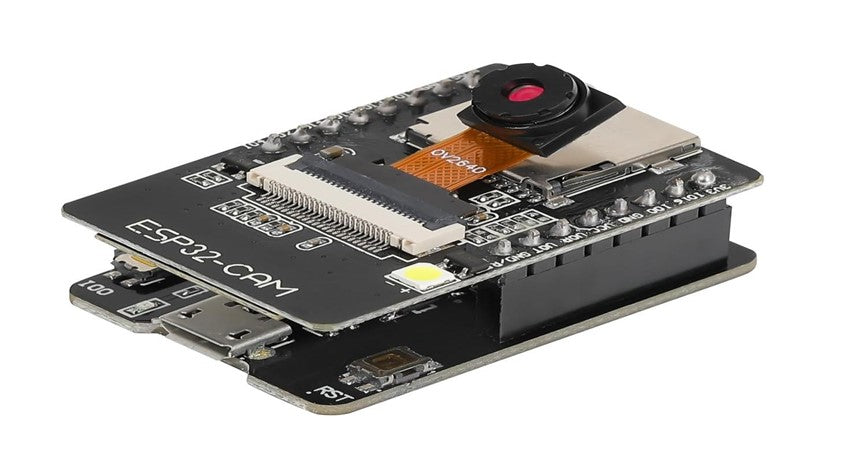

ESP32-CAM Module : Camera Module with Wi‑F & SD Card Slot

Introduction

The ESP32-CAM module is a small and inexpensive development board that brings together a powerful ESP32-S microcontroller, a 2MP OV2640 camera, Wi-Fi capability, and an SD card slot.
With this device, users can capture images in real-time, stream videos, and send data wirelessly without the need for a separate device.

This module is a great fit for IoT, home automation, and AI-vision initiatives, as it allows the creation of smart cameras, security systems, and image recognition applications with very few hardware components.

Features

• Integrated Wi-Fi and Bluetooth-enabled dual-core built-in ESP32-S processor
• OV2640 2MP camera for capturing high-quality images and videos
• MicroSD card slot available for local storage and data logging
• Enables real-time video streaming over Wi-Fi
• Arduino IDE compatible for convenient programming
• Compact and lightweight design, perfect for embedded IoT projects
• Low-power consumption while maintaining high processing efficiency
• Supports AI-based projects such as face detection, motion tracking, and security systems

Technical Details

• Processor : ESP32-S Dual-Core Microcontroller
• Camera : OV2640 2MP Image Sensor
• Flash Memory : 4MB
• Interface : UART, SPI, PWM, I2C, GPIO pins
• Connectivity : Wi-Fi 802.11 b/g/n, Bluetooth 4.2 BR/EDR + BLE
• Storage : MicroSD card slot (up to 4GB supported)
• Power Supply : 5V DC via micro-USB or external source
• Operating Temperature : -20°C to +85°C
• Dimensions : 27mm × 40mm × 5mm
