ESP32 Adapter Board with CP2102 USB-to-UART — Programmer & Power Adapter

Article By :- Shikhar Dwivedi



Introduction: Introduction to the ESP32 Adapter Board

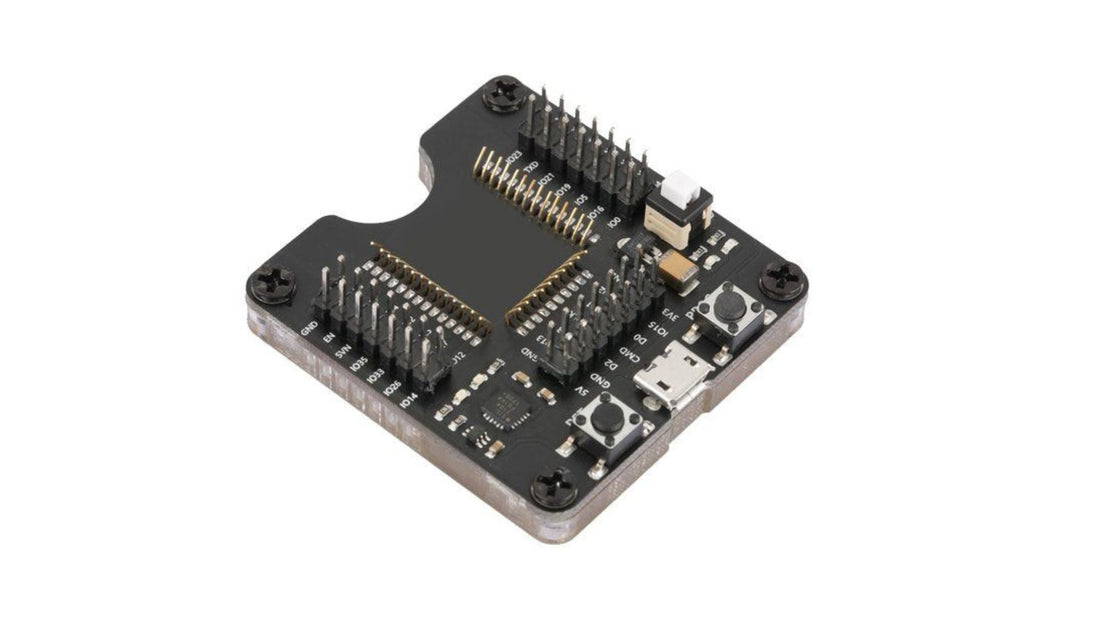

The ESP32 Adapter Board with CP2102 USB-to-UART is a compact, all-in-one solution that makes programming, powering, and debugging your ESP32 development boards incredibly simple. If you’ve ever struggled with unreliable serial connections or messy wiring during prototyping, this adapter eliminates those problems completely. It bridges the communication between your computer’s USB port and the ESP32’s UART interface, providing both stable data transfer and clean power supply.

What Makes It Essential

No USB interface support whatsoever on any of the ESP32 boards. What that means is that you will be forced to get a good USB-to-serial adapter so that you will be able to upload and download code from and to the board. CP2102-based adapter will more than suffice by doing all your voltage translation, data conversion, and power regulation for you. Plug it into your ESP32, plug it into your computer's USB, and roll out — no driver purgatory, no kludgey cables.

How It Works

The adapter secretly contains the CP2102 chip, a battle-tested USB-to-UART bridge that is more stable and more compatible. Here's how it works in simple steps:

1. The moment you connect the adapter, your computer loads CP2102 driver with a virtual COM port.

2. Your IDE (such as Arduino IDE or PlatformIO) then utilizes this port to send commands to the ESP32.

3. The adapter also converts your PC's USB signal to UART signals you can utilize with your ESP32.

 4. It powers the board too through the 3.3V or 5V pin, making it easy to use without having to provide a power supply. This provides you with an easy way of code downloading and powering your ESP32 via one USB connection.

Key Features and Highlights

Chipset: CP2102 USB-to-UART Bridge for secure data transmission. Power Output: Provides 3.3V and 5V regulated outputs for convenience. Auto Reset Support: Controls EN and IO0 pins to initiate ESP32 auto reset for uploading. Plug-and-Play Compatibility: Easy operation right out of the box CP2102 driver installation under Windows, macOS, or Linux.". LED Indicators: Power and data LEDs to give real-time visual indication of data communication having occurred. Miniature Form: Extremely small and lightweight, can be employed in embedded project application or where available physical space is extremely limited.

Technical Details

Input Voltage: 5V via USB Output Voltage: Adjustable 3.3V / 5V Current Rating: up to 500mA Interface: USB 2.0 Type-A UART (TX, RX, DTR, RTS, GND, VCC) Communication Speed: up to 1 Mbps Compatibility: NodeMCU, ESP8266, ESP32, etc., UART-based microcontrollers are compatible The onboard voltage regulator gives clean power even when your voltage through the USB is unstable and won't hurt your ESP32.

Applications and Use Cases

Programming ESP32 Boards: Easy uploading of sketches via Arduino IDE or MicroPython environments. Debugging Serial Output: View sensor values, logs, or debug messages through the serial monitor. Prototyping and Testing: Power and test sensors, modules, or other microcontrollers. IoT and Automation Projects: Best suited for small and starved power projects where communications via USB are reliable. Educational Use: Best suited for hobbyist or student communities which can be catered to by the ESP32 programming process without such intricate configurations.

Advantages of Using the CP2102 Adapter

1. Easy and Convenient: No jumpers and no reset flipping on uploading.

2. Two in One: Programmer and power supply.

3. Power Supply Ensured: 5V and 3.3V clean power supply protects ESP32 from voltage spikes.

4. Friendly to All: Supports almost all ESP32 or ESP8266 dev boards.

5. Space-Saving Package: Small enough to accompany on any breadboard project or tool set. Adapter is time- and frustration-saver in the sense that it is single-cable solution for a programming and powering.
