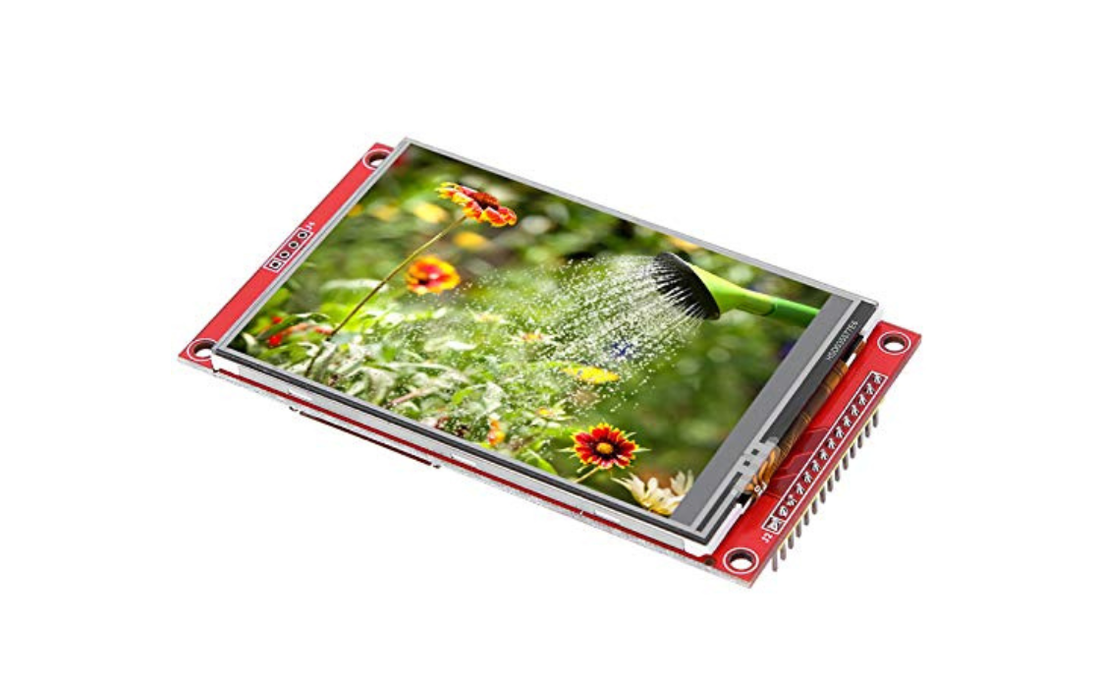

3.5″ SPI TFT Touch Display — ILI9488 Driver
Article by :- Shikhar Dwivedi
INTRODUCTION
ILI9488 driver 3.5-inch SPI TFT Touch Display is a color LCD module for microcontroller-based display applications with high resolution. Its 320×480 pixel resolution, SPI interface, and resistive touch panel provide compromise of visual accuracy, responsiveness, and ease of integration.
This screen is best suited for deployment on mainstream platforms such as Arduino, ESP32, STM32, and Raspberry Pi to enable developers to build rich graphical user interfaces for automation, embedded, and IoT applications. The ILI9488 controller is well geared to drive smooth colors and stable communications via SPI or parallel interfaces.
Small, hungry for power, and easy to develop, this display offers a scenic, professional-grade screen solution to developers who wish to create interactive dashboards, control panels, or monitoring interfaces without any hardware cost.
FEATURES
o 3.5-inch TFT LCD display with a 320×480 pixel resolution
o ILI9488 display controller with full support for 16-bit color
o SPI or 8-bit parallel communications port for versatility
o Resistive touch screen panel for user interaction and navigation
o Arduino, ESP32, STM32, and Raspberry Pi compatible
o 3.3V logic level compatible (level shifter support for 5V MCUs)
o Power efficient for portable and embedded applications
o Outdoor readable with wide viewing angle and high brightness
o High reliability PCB mount design with solder pads and pin header interface
o Ideal for IoT control panels, embedded GUIs, and instrumentation displays
TECHNICAL DETAILS
▪ Item Type: TFT Touch Display Module
▪ Model: ILI9488-based 3.5″ SPI Display
▪ Display Size: 3.5 inch (Diagonal)
▪ Resolution: 320 × 480 pixels
▪ Touch Type: Resistive Touchscreen
▪ Display Driver: ILI9488
▪ Communication Interface: SPI / 8-bit Parallel
▪ Operating Voltage: 3.3V (5V tolerant with level shifter)
▪ Power Consumption: ≤ 160 mA
▪ Color Depth: 65K / 262K (16-bit / 18-bit)
▪ Operating Temperature: -20°C to +70°C
▪ Dimensions: 105 mm × 67 mm × 7 mm
▪ Weight: Approx. 45 g
▪ Supported Boards: Arduino, ESP32, STM32, Raspberry Pi
